V2X Module

V2X Module supports DSRC and C-V2X concurrently, enabling V2V, V2I, and V2P communication

Qualcomm chipset based V2X Module
IMV102 and IMV111 are advanced V2X communication modules based on Qualcomm QVX300/350 chipsets. Designed for vehicle-to-everything (V2X) communication, these modules comply with AEC-Q100, the automotive standard for integrated circuit reliability in harsh environments. Dual-mode support enables both DSRC and C-V2X, operation, including concurrent functionality for current DSRC/LTE-V2X and next-generation NR-V2X.



V2X Module
Features
  • Dual-mode V2X: Support for both C-V2X and DSRC standards
  • Concurrent Dual-channel: Supports DSRC & NR-V2X or LTE-V2X & NR-V2X simultaneously (Dual mode will be supported at end of 2027)
  • Next-generation NR-V2X standard support
  • Safety certified: ASIL B functional safety certification
  • Optimized V2X Stack: Specialized support for IMV111
Fu​nctions
  • Deliver high-performance, automotive-grade connectivity supporting a wide spectrum of V2X technologies
  • Support both DSRC (IEEE 802.11p, ITS-G5) and C-V2X (LTE-V2X and NR-V2X) concurrently
  • Support multiple host interfaces (Ethernet, SPI, SDIO) for external processor connection (IMV102)
  • Embedded application processor with pre-integrated V2X stack for streamlined deployment (IMV111)

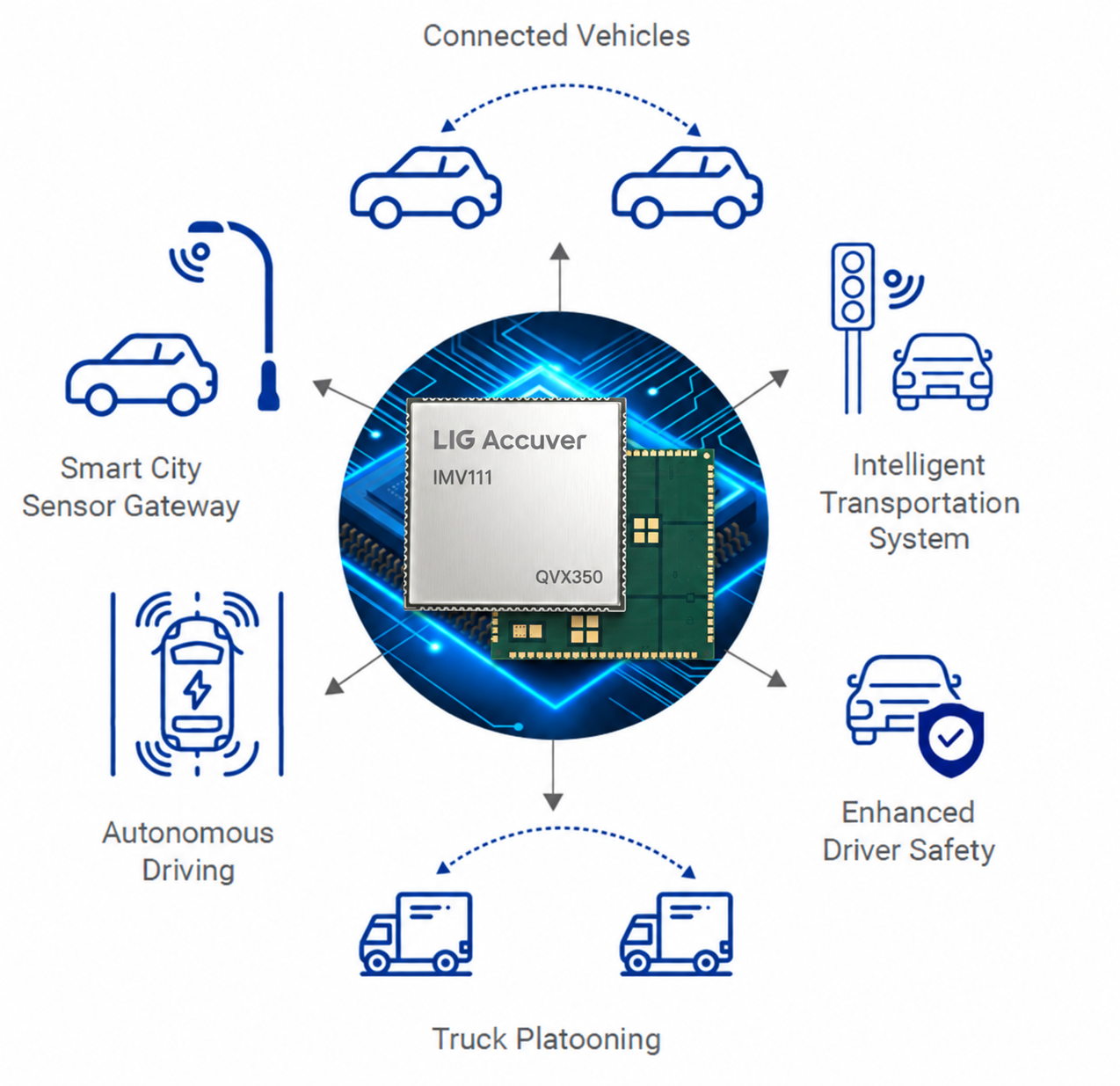

  • Enable comprehensive V2V (Vehicle-to-Vehicle), V2I (Vehicle-to-Infrastructure), and V2P (Vehicle-to-Pedestrian) communication




Specification
Item IMV 102 IMV 111
Chipset Qualcomm QVX300 Qualcomm QVX350
Application Processor N/A Dual-core 850MHz Synopsys ARC HS48FS
V2X Technology DSRC, LTE-V2X, NR-V2X DSRC, LTE-V2X, NR-V2X
V2X Stack Integration with a third-party CPU Pre-integrated global V2X stack
Safety ASIL B for access layer integrity (Optional) ASIL B for all V2X domain processing (Optional)
OS N/A Zephyr RTOS
Host Interface SDIO 3.0, SPI, Ethernet RMII 10/100Mbps, SPI(IMV111)
Form Factor LGA Type Castellated Pay Type
Size 38.8 x 29.4 x 3.3 mm 38.8 x 35.4 x 3.3 mm
Hardware Security - Embedded HSM to support secure signing and storage
- Line-rate cryptographic verification engines
- Support for US, and Chinese security standards
Power class Power class 3
Operating Power DC 5V
Auxiliary Interface I2C, UART, 1PPS input, GPIOs
Antenna 2 ports (Main/Diversity)
Operating Temperature -40~ +105℃(Automotive Grade2)
