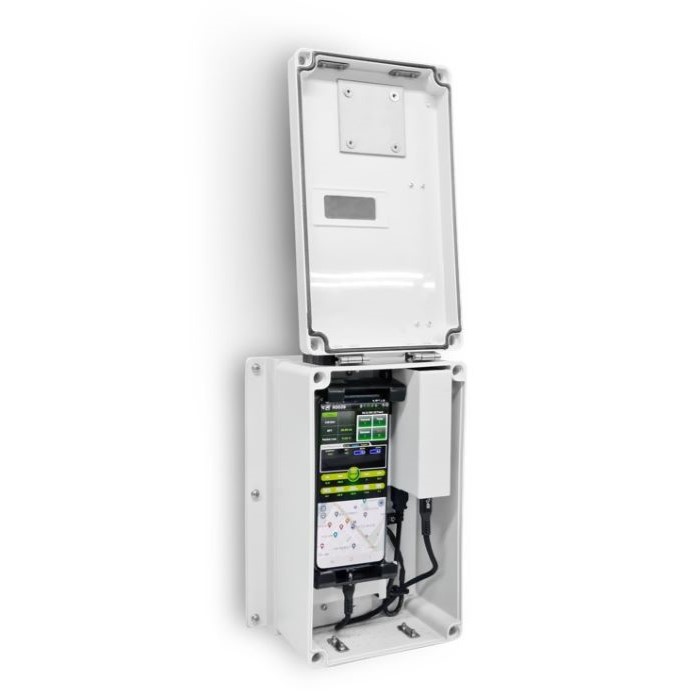

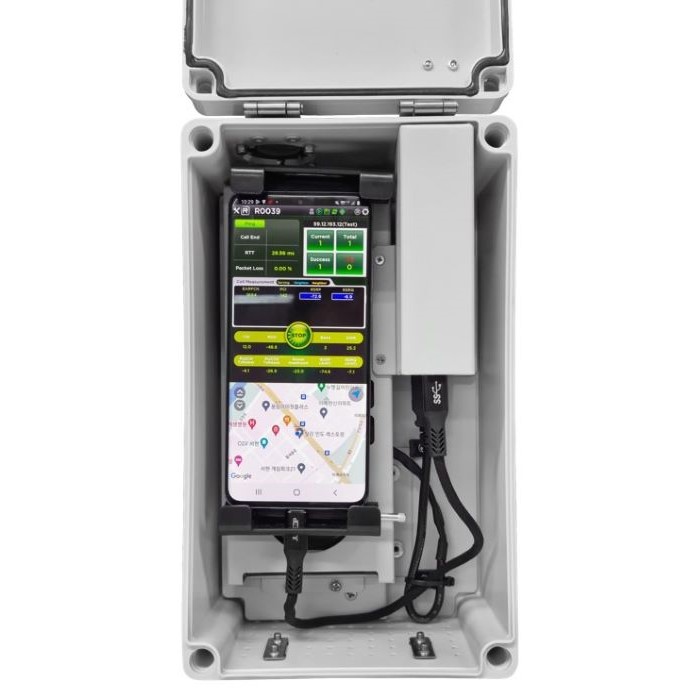

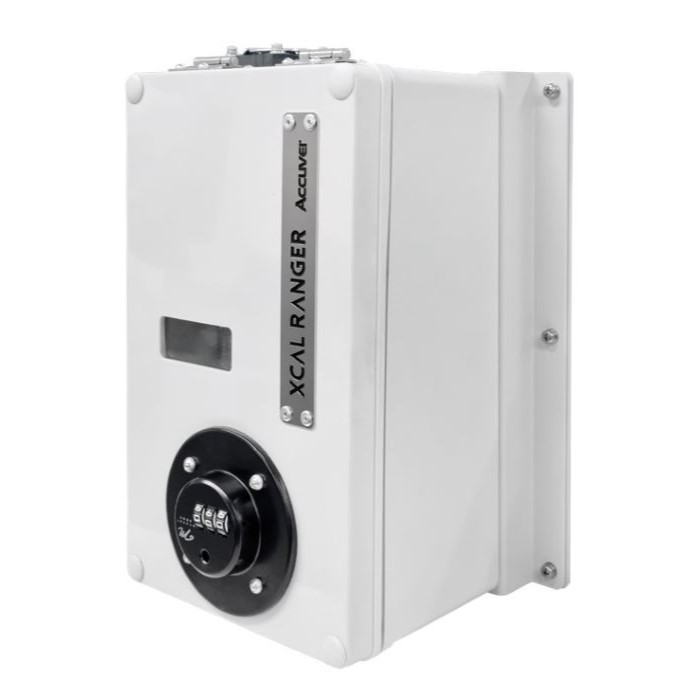

XCAL-Ranger
Unattended Automated Solution for Remote Sites
- Unattended Fully Automated Solution for 5G Network Optimization
- XCAL-Ranger is a reliable solution for unattended and automated network measurement. It supports deployment across transportation environments and remote sites—such as rail, metro, and ships—as well as NTN and Private 5G networks. It seamlessly integrates with the XCAL-Manager, enabling remote control and server-based log management, ensuring continuous and accurate measurements without human intervention.
Use XCAL-Ranger to
-
Deployment types
- Cars, Trains, Buses, Buildings, Remote sites
-
User groups
- Network operations department
- Customer services department
- QoS department vendors
- Network engineering department
- Train operators
Benefits
- 24/7 measurement
- Reduce manual test costs
- Continuous data collection
- Enhanced and wider coverage network testing
- More detailed view of network service status
- Minimize human error in manual testing
- Part of the XCAL family of products, sharing log file format and analysis
Features
-
Auto recovery feature when error occurs
- Automatically performs recovery for errors during measurement
-
Status report
- Reports current device status for remote monitoring feature
-
Automated call
- Supports various types of measurement including Voice, VoLTE, FTP, HTTP, Youtube, etc
-
Schedule for measurement
- Provides various schedule feature to perform automated measurement according to the configured schedule
- Schedule setting type : 1) Set date, 2) Set time, 3) Always
-
Automated Log file upload
- Log files can be uploaded automatically based on log file auto upload option setting provided by XCAL-Auto server
-
Automated Log file delete after upload
- Log files in XCAL-Ranger can be deleted automatically after time configured by log file auto delete feature
Product
Specifications

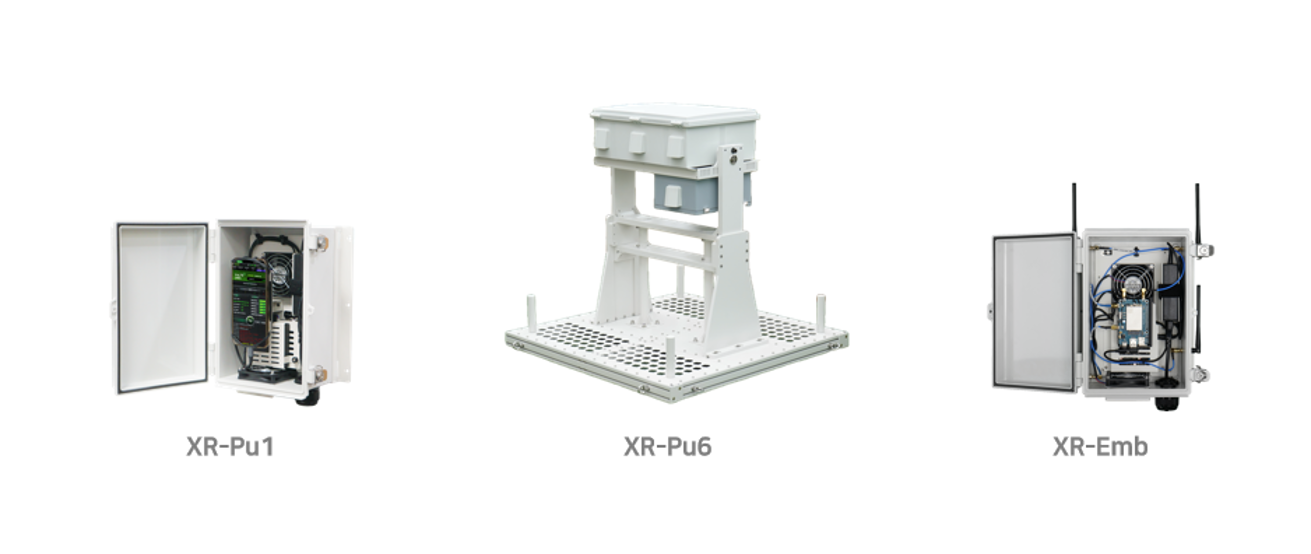

| Item | XR-Pu1 | XR-Pu6 | XR-Emb |
|---|---|---|---|
| Usage | Single-device monitoring for 24/7 field measurement | Multi-device (6-UE) measurements for NTN (Non Terrestrial Network) | Unattended long-term monitoring using an embedded modem |
| Number of Mobile | 1 | 6 | 1 |
| Phone Type | Smart Phone | Smart Phone |
Communication Module |
| Autocall | Fully Supported | Fully Supported | Partially Supported (Attach, Ping, etc.) |
| Watch Dog | Supported | Supported | Supported |
| Cooling System | 2 Fans | 8 Fans | 2 Fans |
