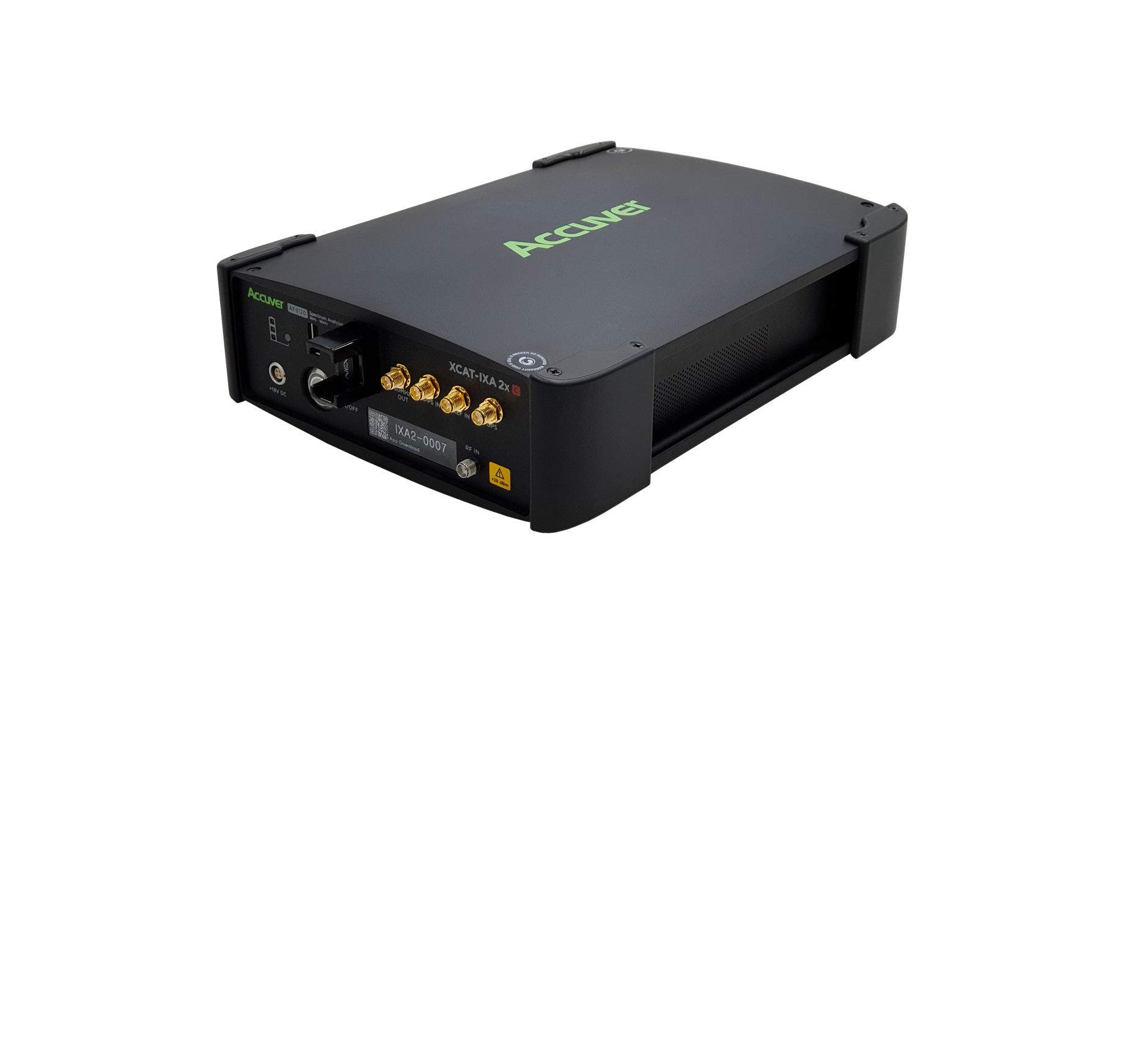

XCAT-IXA Cloud-based Handheld Spectrum Analyzer

Cloud-based Handheld Spectrum Analyzer

Field Portable Solution for validating all aspects of 3G/4G/5G cell site deployment, maintenance and management: XCAT-IXA is specialized handheld 5G-NR spectrum analyzer integrated with cloud server which supports autonomous measurement. This solution offers and opportunity to reduce OPEX and CAPEX across the whole network lifecycle, from initial deployment to maintenance and upgrades, by saving up front equipment cost and labor expense. Also it offers very high efficiency by using autonomous measurement without human error and resolving failure by standard instruction collected from database.

Use XCAT-IXA to

Perform field measurements for spurious waves and signal interference
Conduct coverage scans and PCI scans for 5G NR and LTE neighbor cells
Execute autonomous maintenance for eNB or repeaters
Visualize network performance with integrated Google Map support
Analyze measurement data and generate statistical reports via cloud server
Identify eNB information quickly using QR code scanning
Perform OTA (Over the Air) measurements for instant signal analysis and DB datafication

Benefits

Superior Usability: Intuitive touch-based tablet PC interface for effortless system control
High Mobility: Lightweight and handheld size for easy field movement
Maximized Efficiency: Minimizes human error via autonomous measurement functions
Collaborative Intelligence: Predict and share spurious points among members through cloud-based synchronization
Economic Operations: Low operating costs with rechargeable battery-operated hardware
Systematic Management: Continuous performance enhancement through upgrade management

Features

Spectrum Analyzer
- Spectrum / Channel Power / OBW / ACLR / SEM / SE
- Spurious Wave Measurement
Modulation Analyzer
- 5G NR : Constellation / Error Vector / Multi View / SSB / Location Auto Search
- LTE : Constellation / Error Vector / MQS
- WCDMA : Code Domain Power / Modulation Accuracy
PCI Scan
- Supports 5G NR and LTE
- Coverage Scan Function
- Support Google Map
Autonomous Operation Suite
- Autonomous Measurement Function
- Autonomous Measurement Records
- Search eNB using QR Code
Smart Data & System Management
- Cloud Server & User Management
- The Statistic Function
- Measured Data Analysis
- Upgrade Management

Features

PRE-CONFIGURED SIGNAL ANALYZER	Channel Power OBW(Occupied Band-Width) ACLR(Adjacent Channel Leakage Ratio) SEM(Spectrum Emission Mask) SE(Spurious Emission) Harmonic Distortion

5G NR	Duplex	TDD
	Channel BW	5/10/15/20/25/30/40/50/60/70/80/90/100 MHz
	Subcarrier spacing	15/30/60 kHz
	Measurement Item	Cell Info	PCI, Group ID, Sector ID GSCN SSB-SCS
		Power Info	RSTP/RSRP, RSRQ OFDM Symbol Power
		Signal Quality	Frequency Offset Time Offset EVM per Channel Modulation Order #RB per Channel

LTE	Duplex	FDD and TDD
	Channel BW	1.4/3/5/10/15/20 MHz
	Measurement Item	Cell Info	PCI, Group ID, Sector ID
		Power Info	RSTP/RSRP, RSRQ, OFDM Symbol Power
		Signal Quality	Frequency Offset EVM per Channel Power per Channel #RB per Channel Time Alignment Error Index of Antenna Path

WCDMA	Duplex	FDD
	Measurement Item	Code domain	Total Power/Total Active Power CPICH/PSCH/SSCH Power Max/Avg Active/In-active Power
	Measurement Item	Modulation Accuracy	Rho, EVM (RMS/Peak) Peak CDE/Peak Active CDE Frequency Offset/ IQ Origin Offset
