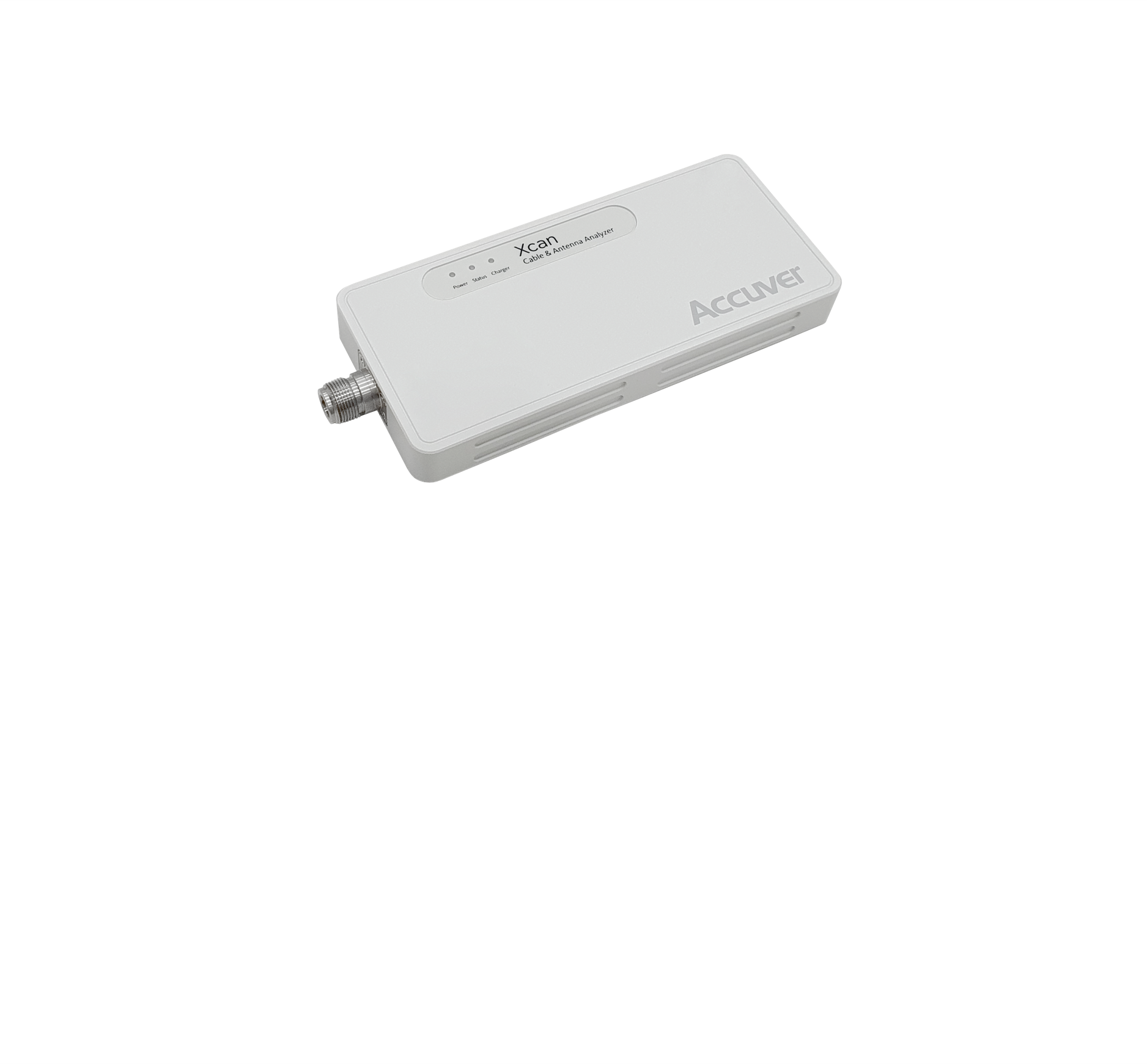

XCAT-CAN
Handheld Cable & Antenna Analysis Solution
- Cable and Antenna Analyzer for Accurate Measurement

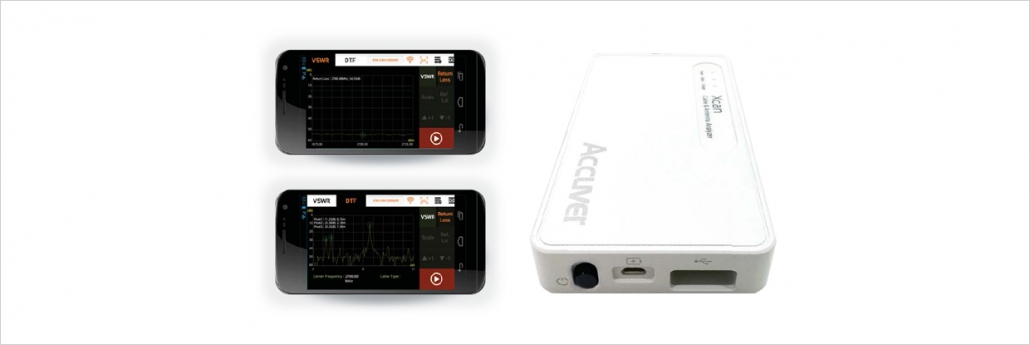

- XCAT-CAN is designed for convenience of field engineers by combining cable and antenna analyzers together. Light weight and handy design make it easy for field engineers to carry it wherever it is needed. With state-of-the-art technology, fast and highly accurate measurement is possible, and no warm-up time is needed.
Use XCAT-CAN to
- Network equipment installation
- Field network maintenance service
- Instance measurement and analysis
Benefits
- Wideband frequency range
- Fast and highly accurate measurement
- Very light and compact design
- Immediate diagnosis and troubleshooting
- Easy to operate and convenient to use
- Simple upgrade by S/W download
- No external power required (Rechargeable battery operated)
- USB interface for Wi-Fi dongle and host communication
Functions
| Item | Specification |
|---|---|
| Frequency range | 100MHz ~ 6GHz |
| VSWR range (Resolution) | 1.05 ~ 65 (0.01) |
| DTF Max. measurement range | 500m (Max. Loss 60dB) |
| Connector Type | N Type (Max. Input 1W (+30dBm) |
| Connection | Wi-Fi, USB |
| GUI | Android device |
| Battery capacity | 3.81Ah (14.21Wh) |
| Calibration | Open, Short, Load |
| Size | 88 x 22 x 214 (mm, W x H x D) |
| Weight | 548g (including battery) |
