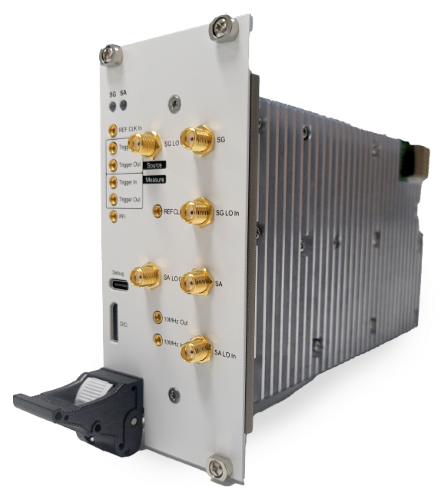

XCAT-RTT
Mass Production RF Testing
- Mass Production RF Testing
- Test automation system leveraging PXIe backplane bus technology, scalable for wireless communication equipment production. It integrates Signal Analyzer, Signal Generator, and RF Calibration functions to measure the RF performance of DUTs (Devices Under Test) using a non-signaling method.
Use XCAT-RTT to
- High volume Manufacturing Test
- Small Cell, WiFi APs, etc.
- Easy and accurate to measure the cable loss by using the function of built-in SG and SA
- RF Characteristic test for RF components and modules (Amp Gain, Loss, etc.)
- Measure RF Characteristics of RF components and modules by function of Signal Generator and Signal Analyzer
Features
- Integration of Signal Analyzer, Signal Generator, RF Calibration, and Verification functions into a single device
- Simultaneous measurement of multiple DUTs to reduce production time and costs
- Reduced test time, leading to lower production costs
- Supports an instantaneous bandwidth of 1.2 GHz, enabling measurements for 802.11be (Wi-Fi 7) and wideband
Functions

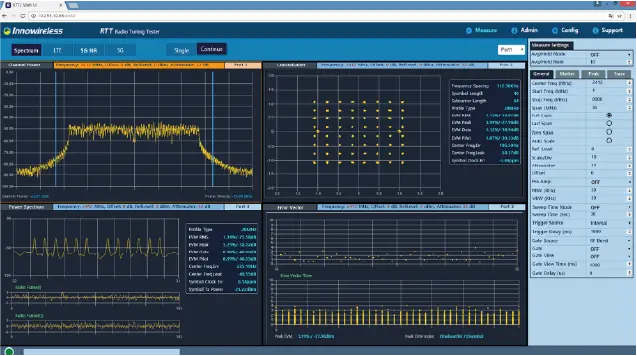

- Wireless Signal Measurement
- 5G, LTE, Wi-Fi

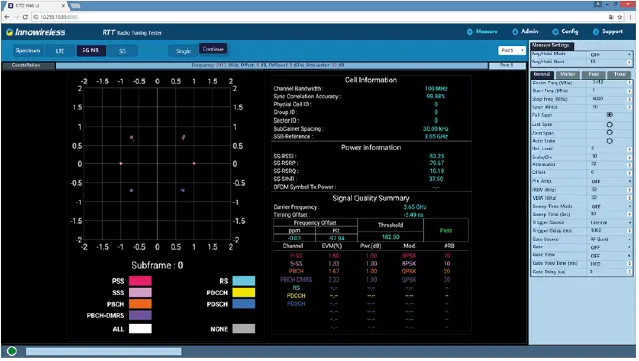

- Cell Information
- PCI/Group ID/Sector ID

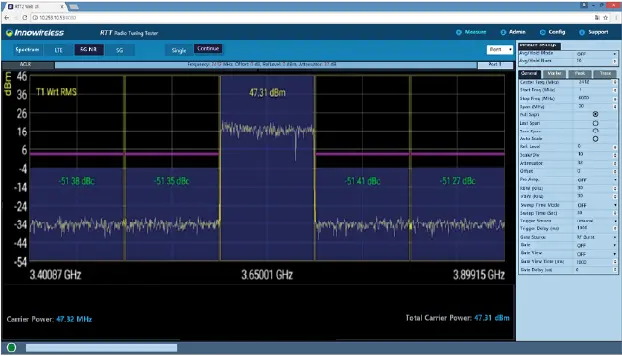

- Power Information
- SS-RSSI/RSRP/RSRQ/SINR
- Signal Quality

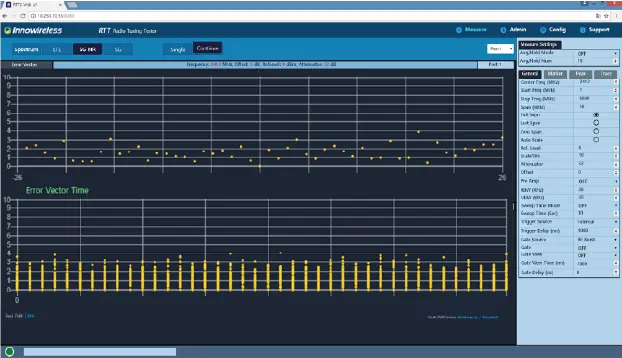

- Frequency Offset, Time Offset, EVM per channel, etc.
- Test Automation
- Measurement of RF component characteristics
- Storage and transmission of I/Q data
